LCDFrame Class Reference
[Widgets]

#include "api/LCDFrame.h"

Inheritance diagram for LCDFrame:

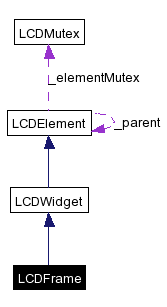

[legend]Collaboration diagram for LCDFrame:

[legend]List of all members.

---

Detailed Description

This widget is a container for other widgets. They can be added in it as they are in a screen.

Definition at line 14 of file LCDFrame.h.

Public Types
typedef std::list< std::string >	ParameterList
	A list of parameters for set method.
Public Member Functions
	LCDFrame (LCDElement *parent=0, const std::string &id="")
	Default Constructor.
void	set (int left, int top, int right, int bottom, int width, int height, Direction direction, int speed)
	Set the values for the widget.
void	move (int x, int y=1)
	Move the widget to a new location.
void	set (const ParameterList &pList)
	Generic method to set widget parameter.
void	add (LCDElement *child)
	Add a child to the component.
const std::string &	getId ()
	Returns Id of the element.
Static Public Member Functions
bool	exists (std::string id)
	Test if a widget with given Id exists.

---

Member Typedef Documentation

typedef std::list<std::string> ParameterList [inherited]

This is a list containing strings. Each string corresponds to a parameter. Definition at line 42 of file LCDWidget.h.

---

Constructor & Destructor Documentation

LCDFrame (  LCDElement *  parent = 0, const std::string &  id = "" )

This constructor can be used without parameter in most cases. But the widget will have to be added to a parent (screen or frame). Parameters: parent  A pointer to parent of this screen. It should be a LCDClient object. id  A string with the identifier for the screen. If not provided, a unique one will be generated automatically. Definition at line 6 of file LCDFrame.cpp.

---

Member Function Documentation

void add (  LCDElement *  child  )  [inherited]

This method is used to add a child to a component. Parameters: child  The element to be added in the children list. Examples: client.cpp. Definition at line 110 of file LCDElement.cpp.

bool exists (  std::string  id  )  [static, inherited]

This static method is used to test the existence of a widget. Parameters: id  The identifier of the widget to test. Definition at line 76 of file LCDElement.cpp.

const string & getId (   )  [inherited]

With this method one can have read access to the element identifier. Returns: A string. Definition at line 82 of file LCDElement.cpp.

void move (  int  x, int  y = 1 )  [inherited]

Change the coordinate of a widget. Even if all the widgets have this method, it won't have an effect on all of them. Parameters: x  Integer containing 1-based value for column number. y  Integer containing 1-based value for row number. See also: LCDScreen::setCursorPosition Examples: client.cpp. Definition at line 22 of file LCDWidget.cpp.

void set (  const ParameterList &  pList  )  [inherited]

This method can be used to set all parameters of a widget. You should know the ones that are used by the protocol to put all of them in correct order. Parameters: pList  A list of all the parameters values. Definition at line 34 of file LCDWidget.cpp.

void set (  int  left, int  top, int  right, int  bottom, int  width, int  height, Direction  direction, int  speed )

Set or change the useful values for this widget. Parameters: left  Integer containing 1-based left position of the widget. top  Integer containing 1-based top position of the widget. right  Integer containing 1-based right position of the widget. bottom  Integer containing 1-based bottom position of the widget. width  Integer containing width for this widget (in characters). height  Integer containing height for this widget (in characters). speed  Number of movements per rendering stroke (8 times/second). direction  Can be 'h' for Horizontal or 'v' for Vertical. Definition at line 10 of file LCDFrame.cpp.

---
