LCDSensor Class Reference
[Sensors]

#include "api/LCDSensor.h"

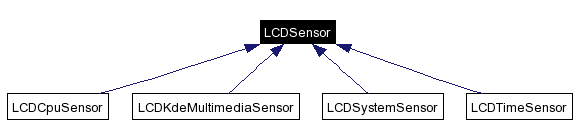

Inheritance diagram for LCDSensor:

[legend]List of all members.

---

Detailed Description

All the sensors in this API have LCDSensor as their base class. It should not be used directly but to create new sensors in the API or in the user application.

A sensor should implement waitForChange and getCurrentValue. It can use some methods defined here for convenience.

Definition at line 55 of file LCDSensor.h.

Public Member Functions
virtual void	waitForChange ()=0
	Returns when a change occured on the measured value.
virtual std::string	getCurrentValue ()=0
	Get the current value measured by the sensor.
std::string	intToString (int value)
	Convert an integer to a string.
std::string	executeCommand (const std::string &cmd)
	Execute an external command.
void	addOnChangeWidget (LCDWidget *widget)
	Add a new widget that must be set when the sensor value changes.
void	addOnTimeOutWidget (LCDWidget *widget, int timeOut)
	Add a new widget that must be changed regularly.
void	removeOnChangeWidget (LCDWidget *widget)
	Remove a widget that was added with addOnChangeWidget.
void	removeOnChangeWidget (std::string id)
	Remove a widget that was added with addOnChangeWidget.
void	removeOnTimeOutWidget (LCDWidget *widget)
	Remove a widget that was added with addOnTimeOutWidget.
void	removeOnTimeOutWidget (std::string id)
	Remove a widget that was added with addOnTimeOutWidget.

---

Member Function Documentation

void addOnChangeWidget (  LCDWidget *  widget  )

This method is used to associate a wiget to a sensor. When the sensor value change, the widget value will be changed accordingly. Parameters: widget  The widget to associate with this sensor. Examples: client.cpp. Definition at line 108 of file LCDSensor.cpp.

void addOnTimeOutWidget (  LCDWidget *  widget, int  timeOut )

This method is used to associate a wiget to a sensor. Each time the specified timeout ellapsed, widget value is changed. Parameters: widget  The widget to associate with this sensor. timeOut  The time to wait between each update (second tenths). Definition at line 137 of file LCDSensor.cpp.

string executeCommand (  const std::string &  cmd  )

This method can be used to invoke another program and get its output. Only the first line is returned. Parameters: cmd  The command to execute as if a shell is used. Returns: A string containing the first line of the command output. Definition at line 88 of file LCDSensor.cpp.

virtual std::string getCurrentValue (   )  [pure virtual]

This virtual function should be implemented by a real sensor. It should return the current value as a string. Returns: Current value of the sensor. Implemented in LCDCpuSensor, LCDKdeMultimediaSensor, LCDSystemSensor, and LCDTimeSensor.

string intToString (  int  value  )

Utility function to convert an integer to a string so it can be returned by getCurrentValue. It should return the current value as a string. Parameters: value  The integer value to convert. Returns: String version of the value. Definition at line 83 of file LCDSensor.cpp.

void removeOnChangeWidget (  std::string  id  )

This method is used to delete the association between a wiget and a sensor. Parameters: id  The identifier of the widget to remove from sensor configuration. Definition at line 124 of file LCDSensor.cpp.

void removeOnChangeWidget (  LCDWidget *  widget  )

This method is used to delete the association between a wiget and a sensor. Parameters: widget  The widget to remove from sensor configuration. Definition at line 119 of file LCDSensor.cpp.

void removeOnTimeOutWidget (  std::string  id  )

This method is used to delete the association between a wiget and a sensor. Parameters: id  The identifier of the widget to remove from sensor configuration. Definition at line 155 of file LCDSensor.cpp.

void removeOnTimeOutWidget (  LCDWidget *  widget  )

This method is used to delete the association between a wiget and a sensor. Parameters: widget  The widget to remove from sensor configuration. Definition at line 150 of file LCDSensor.cpp.

virtual void waitForChange (   )  [pure virtual]

This virtual function should be implemented by a real sensor. It should wait for the value to change and then just return. Implemented in LCDCpuSensor, LCDKdeMultimediaSensor, LCDSystemSensor, and LCDTimeSensor.

---
